Cold Cutting and Pipe Beveling
We offer the system of cold cutting and chamfering of pipes and pipes from 4 to 20 inches in diameter, to apply it in conditions where it is required to reduce the risks of explosiveness and optimize execution times. Ideal for maintenance of pipes, TR’s, pipe lines, oil platforms, refineries, petrochemical plants, water treatment plants and other applications by means of pneumatic equipment with blades.

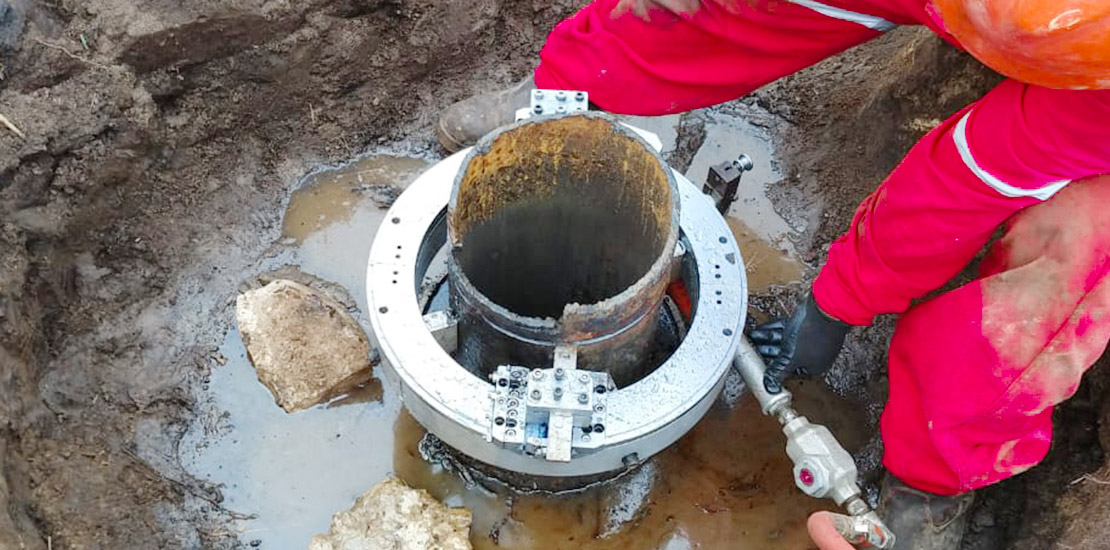

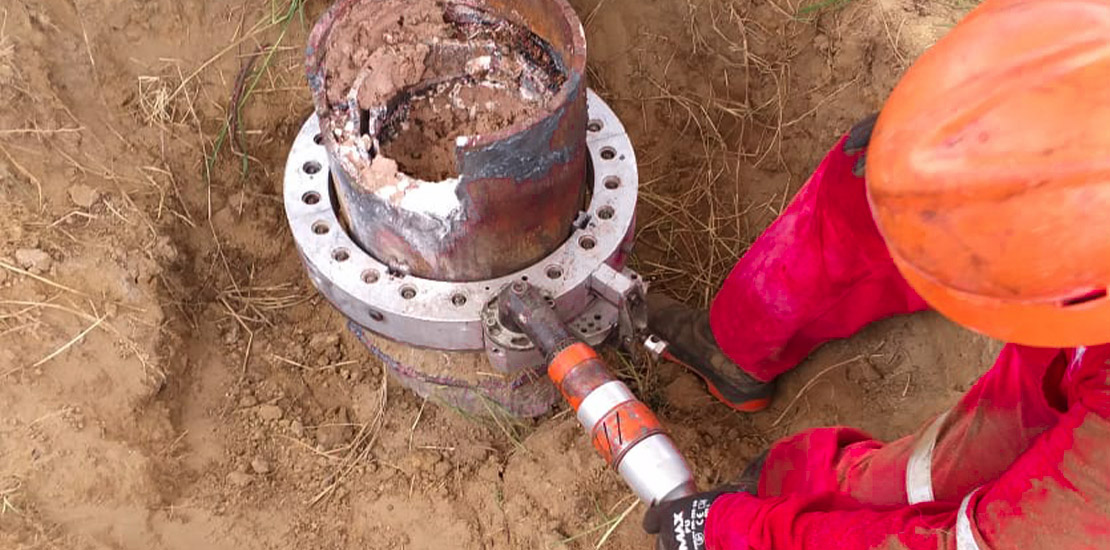

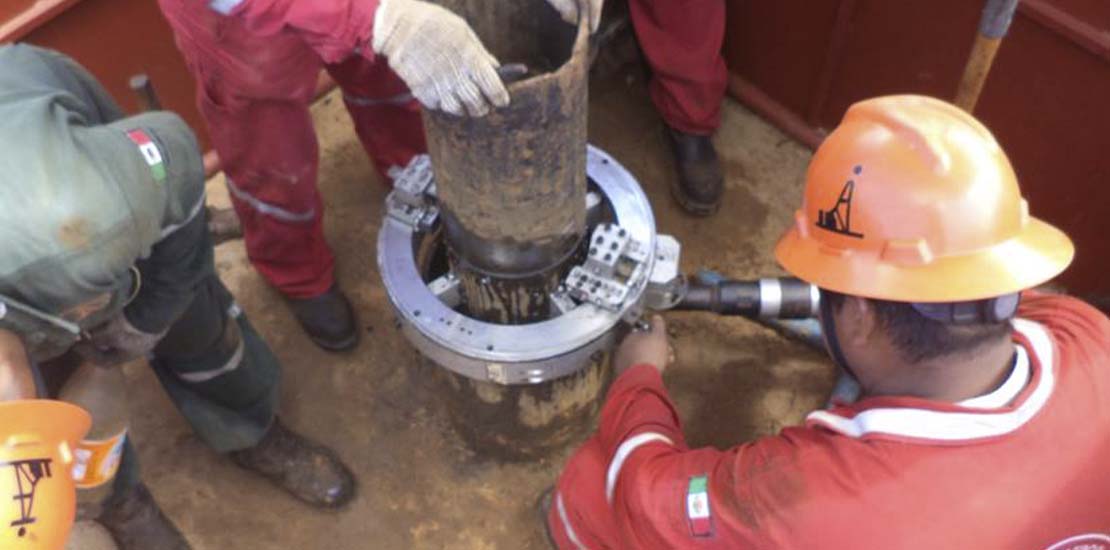

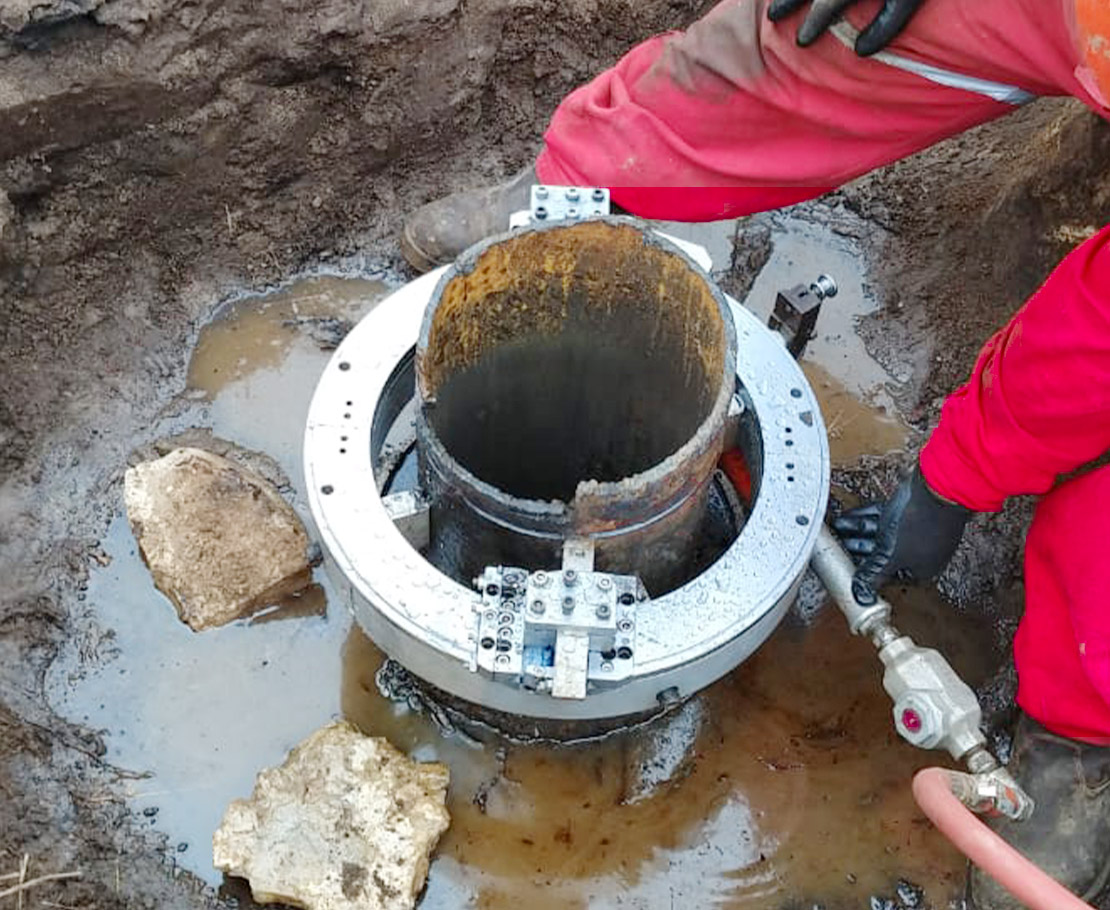

The machine can be operated by two or even one person, due to its low weight. (50kg. Maximum). The assembly of the machine for cutting and chamfering the casing is carried out in very short times.
This equipment is of automatic rotation, capable of performing the cutting and external beveling simultaneously and inner bevel in the absence of flame for greater safety of the well, performs the operation of cutting and bevelling in an extremely short time, which is a benefit for our customers.
The simultaneous cutting and beveling equipment consists of:
- - Bipartite rotating ring with 4 jaws system.
- - Set (4 pcs. Each) of extensions for jaws.
- - Cutting knife holder.
- - Bevel blade holder.
- - Cutting blade.
- - Internal bevel blade.
- - Pneumatic motor.
- - Set of tools for installation.
- - Protective box
Specifications:
The rotating ring in its fixed part is composed of aluminum material, low friction 'v' bearings, hardened laser track, eccentric guide for wear adjustment. The rotating part is made of tempered steel with a hardened chrome finish for greater corrosion resistance.
The jaws are in the form of plates allowing this a self-alignment in the tube when cutting or beveling, thus having a constant cutting and bevel feed and a faster entry. All machine screws are for Allen wrenches, the rotating ring assembly screws have a special cavity to prevent them from losing.
The blade holders are made of Alloy steel material, which gives them greater wear resistance, have an automatic feed of 0.0026 ”per turn.
• 3/16” x 5 ”cutting blade
• Bevel blade 10 degrees x 37.5 degrees.
The motor can be pneumatic or hydraulic, with multi-position base thickness of the machine with everything and blade holder no larger than 6 ”.
Very little space between pipes is needed to perform the cutting and chamfering. (space not larger than 5 ”) No special accessories are needed to perfectly cut and bevel the casing, with a 100% satisfactory quality.

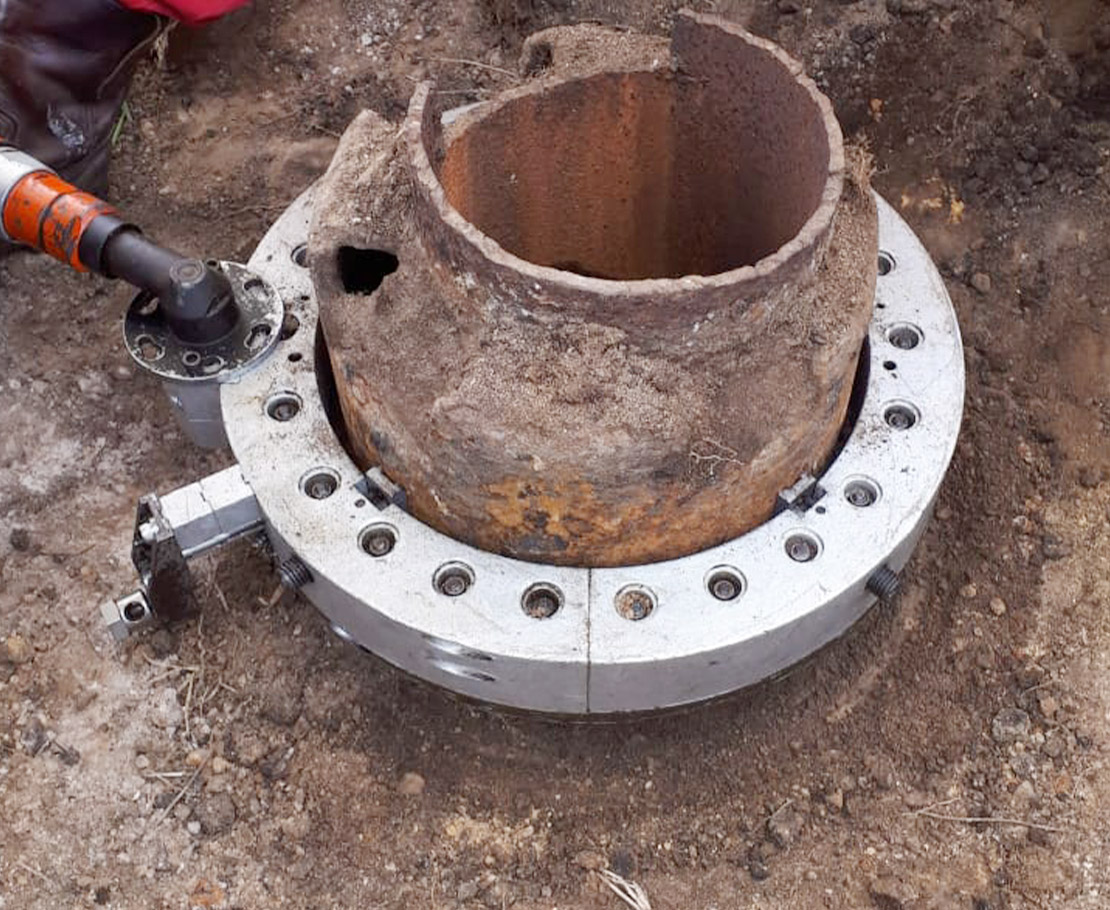

After finishing the external cutting and chamfering, the internal chamfering of the casing pipe is carried out, this operation is carried out in extremely short times. Final finish of the casing pipe after completing the external and internal cutting and beveling operation.
