Hydrostatic Tests

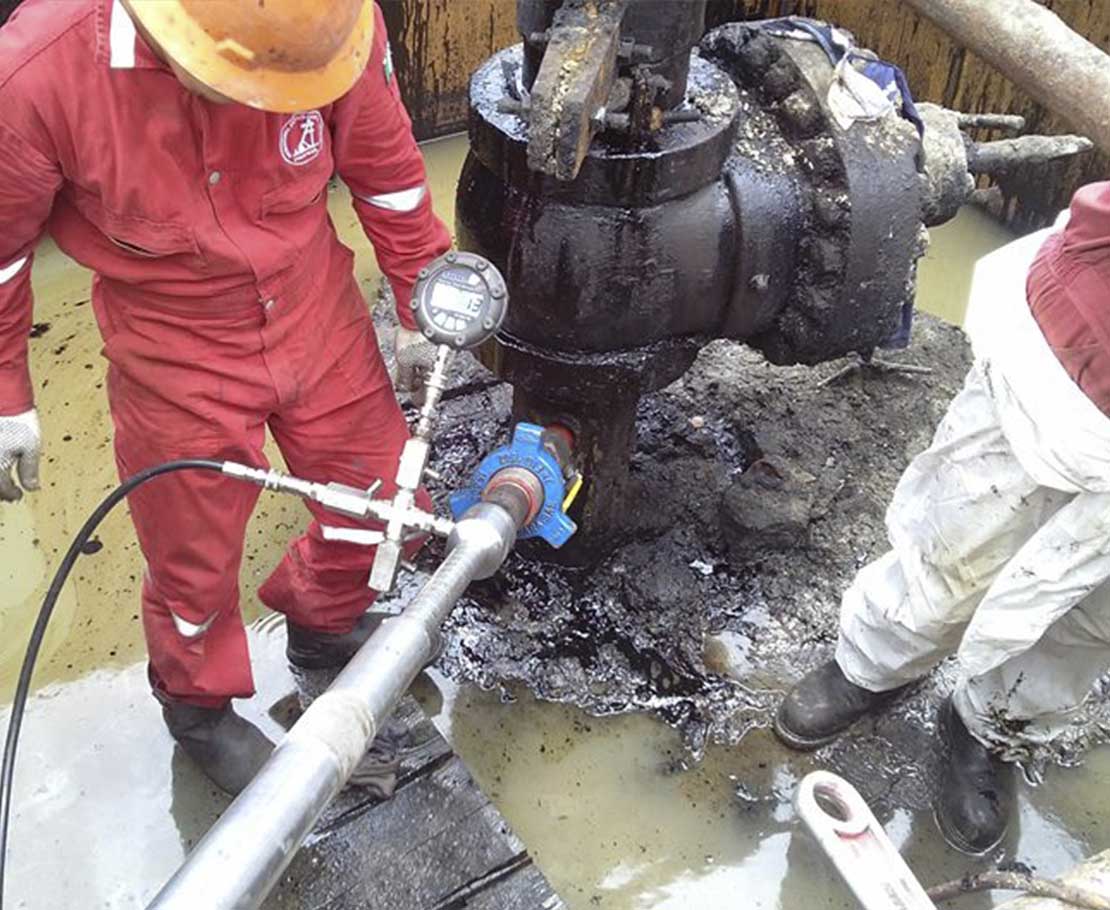

We are Specialists in the performance of Hydrostatic Tests where it is required to check the tightness in the different types of well control components.

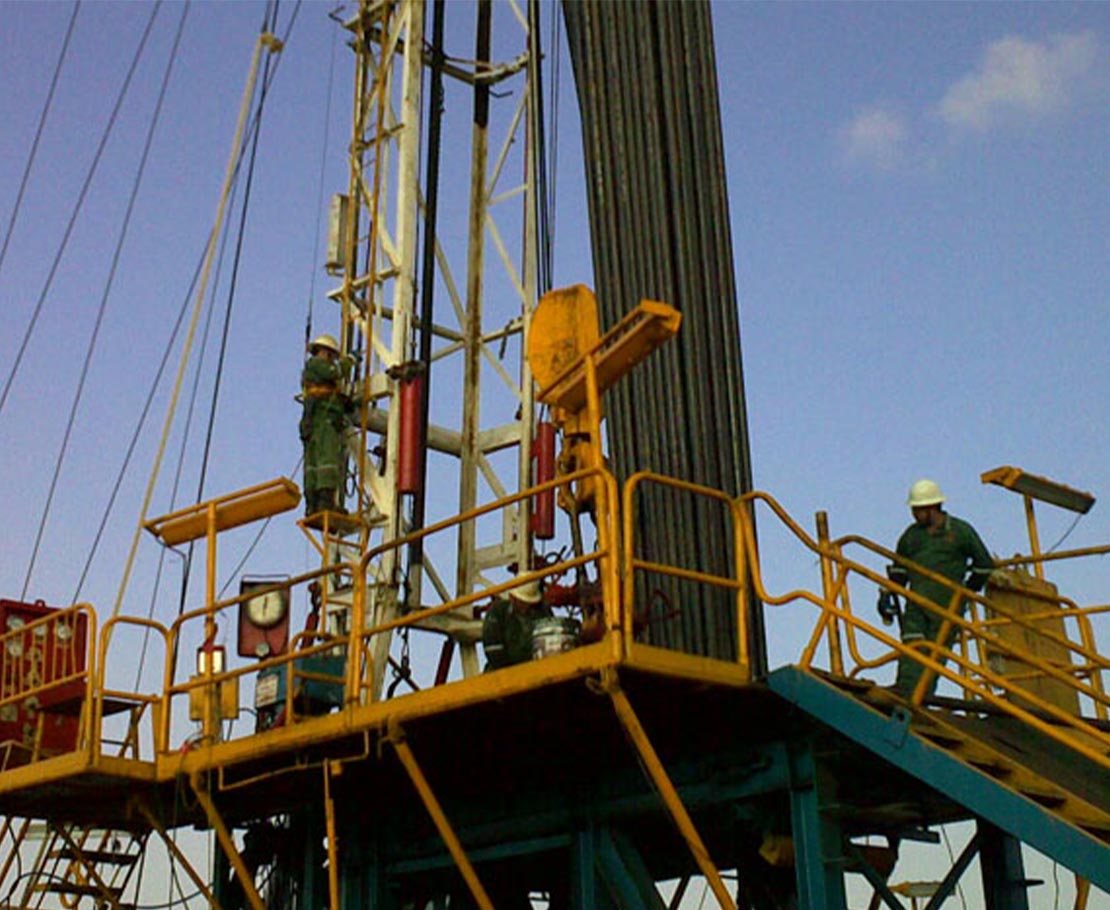

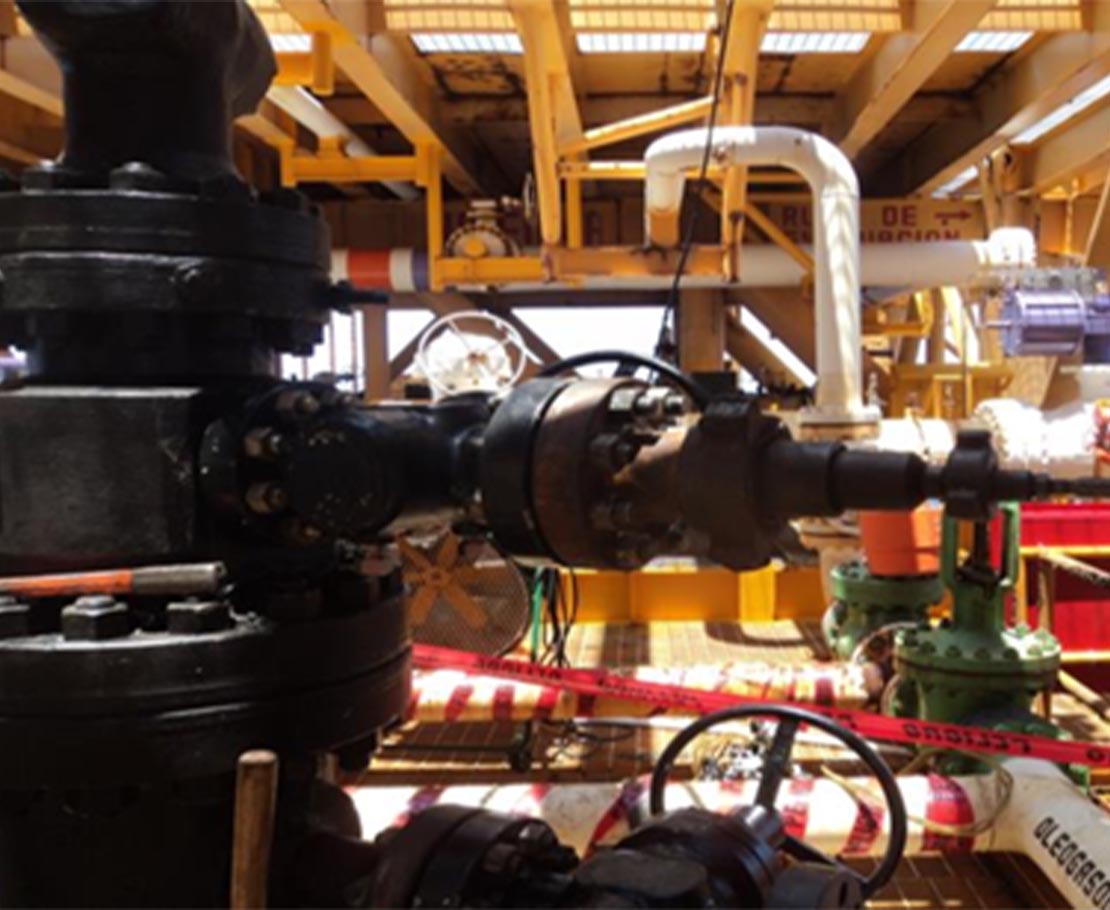

We execute Hydrostatic Tests to production pipe, Heads, Preventors, Valve Trees and everything related to surface control connections in land, lake and offshore wells.


Special features

  • - Autonomous operating equipment.
  • - Removable and easily transportable Test Equipment.
  • - Easy access for loading and unloading, on marine platforms.
  • - Equipped with fire extinguishers.
  • - Equipped with easy access ladder and railing, for added security.
  • - Spacious and protective platform for the visualization of cargo, designed to meet safety requirements.
  • - Dimensions of the Terrestrial Testing Unit, Operations booth 1.89 meters. wide, 1.79 meters. long, 2.00 meters. high, power unit 2.00 meters. wide, 2.51 meters. long, 1.90 meters. High.
  • - Dimensions of the Marine or Lacustrine Testing Unit 1.60 meters. wide, 1.96 meters. long, 1.35 meters. High.
  • - Space to transport testers, cups and combinations safely.
  • - The control panel is simple, robust and safe.

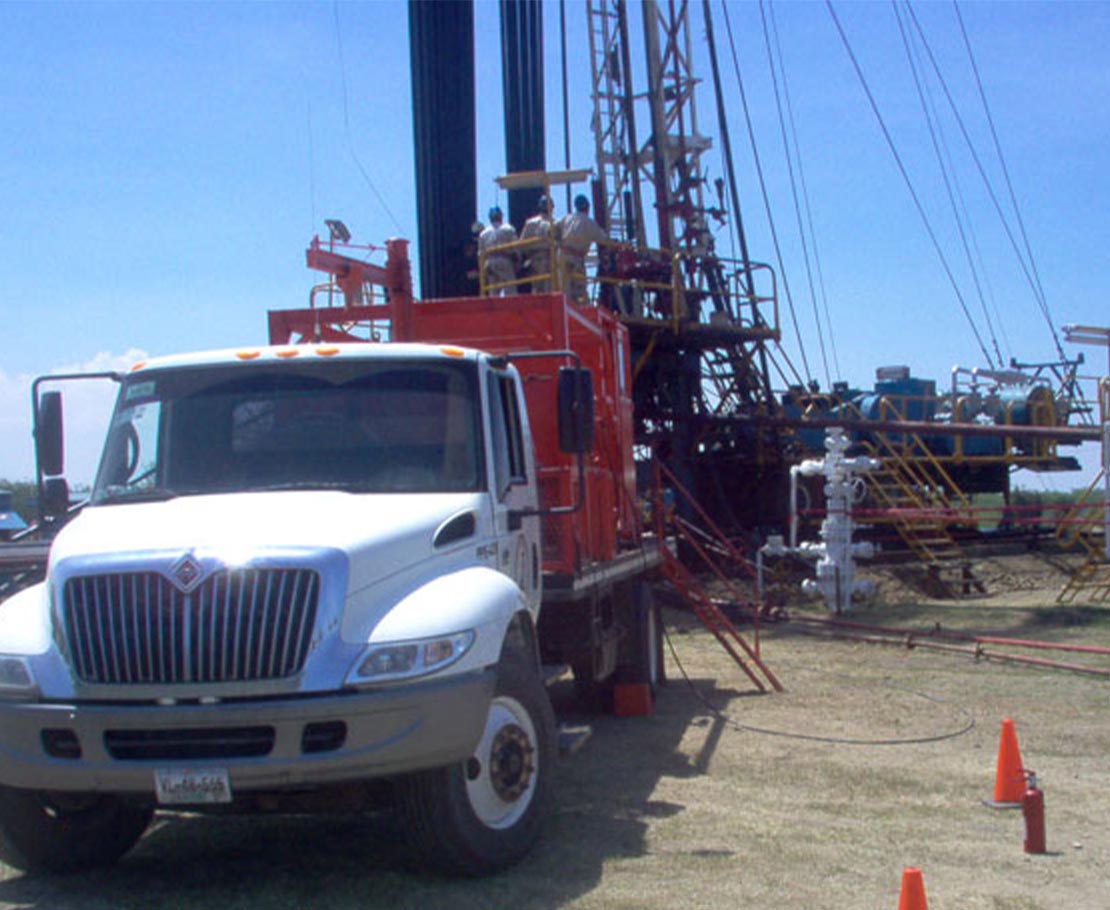

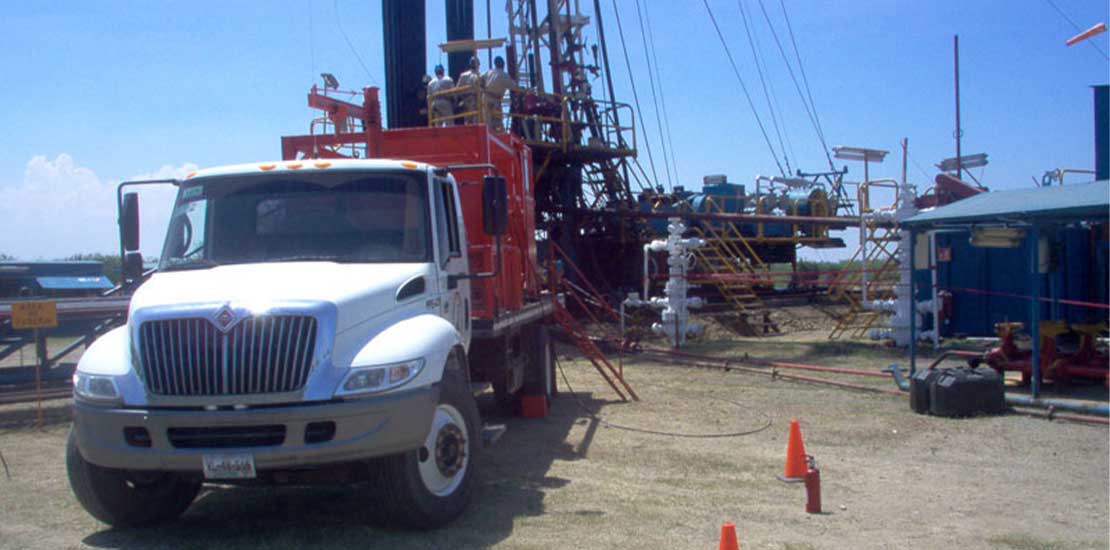

Hydrostatic Testing Equipment for Land Wells.

The hydrostatic test unit is mounted on an oil skate and transported by a truck with a load capacity of 12 tons. It is integrated by an Internal Combustion Engine, Pressure Pump, Hydraulic Winch, Hydraulic Oil Storage Tank, Water Storage Tank, Operation Booth, Control Panel, Instrumentation and Measurement.





Internal combustion engine



Fuel: Diesel .
Naturally cooled by air
Fuel system: Advanced injection
Start: Turbo charged
Number of cylinders: 4 to 6
Displacement: 4 to 8.7 Lts.
Design: Extremely compact
Benefits: Low emission of noise, low vibration emission, minimizes environmental impact.


Hydrostatic Testing Equipment for Lacustrine and Marine Wells



Pressure range from 15,000 psi to 20,000 psi.

Flow range from 2.6 gpm to 10.3 gpm.

Embolada: 3 ”/ 76mm.

Vel. Max .: 600rmp.

Weight: 810 lbs / 368kg.
Drag capacity: 3,000lbs.

Speed: 433ft / min.

Cable: 3/8 ”

Cable length: 150 mts.

Weight: 415lbs / 188 kg.
Capacity: 200lts

Material: 1/8 ”caliber sheet

Oil Type: Hydraulic ATF
Capacity: 1,000 lts

Material: 1/8 ”stainless steel

Control panel, Instrumentation and Measurement.






Graph 0-20,000 psi

-Motor acceleration actuator valve
-Manometer 0 - 20,000 PSI Graphor 0 - 20,000 psi
-Air pressure gauge gauge (actuator valve feed)
-Pneumatic start-up actuator Motor
-Valve to release pressure discharges from the test elements
-Mating system actuator valve
-Pump actuating valve
-Valve to retain pressure discharges from the test elements





Manometer



½ ”npt stainless steel connection. -Mechanism: rotary type stainless steel.
-Precision: + - 0.5% of the total scale.
-Range: 0 to 20,000 psi.
- Bourdon and connection: monel steel.
-Scale in: kg / cm2 and psi.


Recorder

- Pressure range: 0 to 20,000 psi
- Battery operated watch range: 0 to 24 hrs. - - Recorder with a 12 ”Letter nib
- Accuracy range: 0.5%
